Customizable Dilute Phase Pneumatic Conveying Ejector - Low Wear Design

Customizable Dilute Phase Positive Pressure Conveying Ejector – Low Wear, High Capacity

Description

Structural Composition

1. Air Intake Section

   • Composed of an air intake regulating valve, movable air pipe, adjustment mechanism, and nozzle.

   • Primary function: Controls and regulates the airflow rate and pressure entering the pump body, while accelerating the air to form a high-speed jet stream.

2. Diffusion and Mixing Chamber

   • Consists of the pump body, fluidization device, and upper ash hopper.

   • Primary function: Serves as the zone where material and air are mixed and fluidized. Here, the material is dispersed and aerated by the high-speed airflow, forming a gas-solid mixed flow.

3. Discharge Section

   • Composed of a diffuser (tapered reducer and expander) and a discharge pipe section.

   • Primary function: Decelerates and pressurizes the gas-solid mixed flow, ensuring smooth entry into the conveying pipeline for transport to the destination.

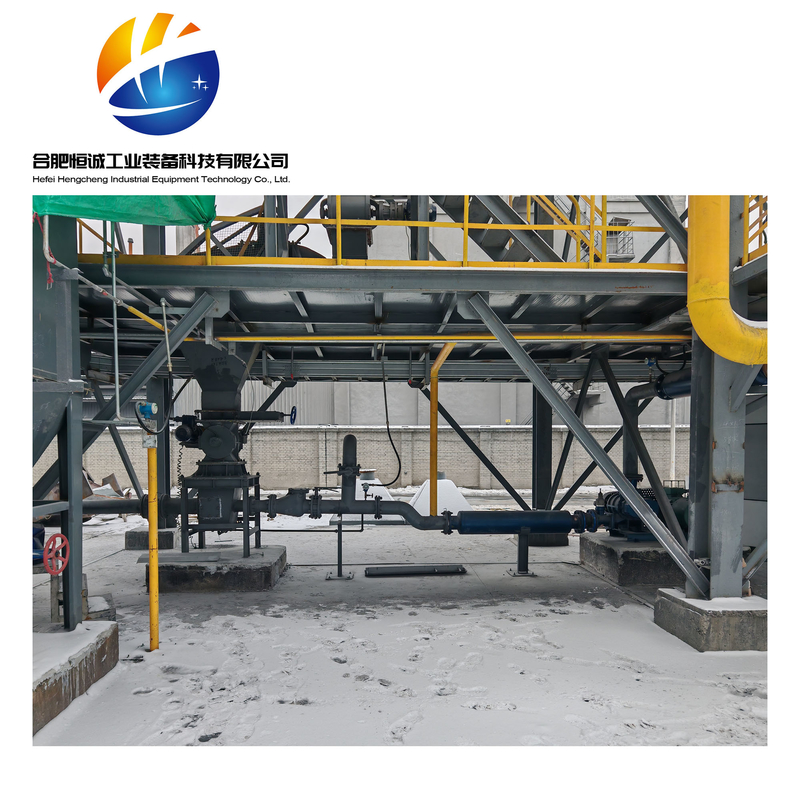

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Main features of the product
PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. The moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.
